Computer-Indicator Radiac
CP-95/PD

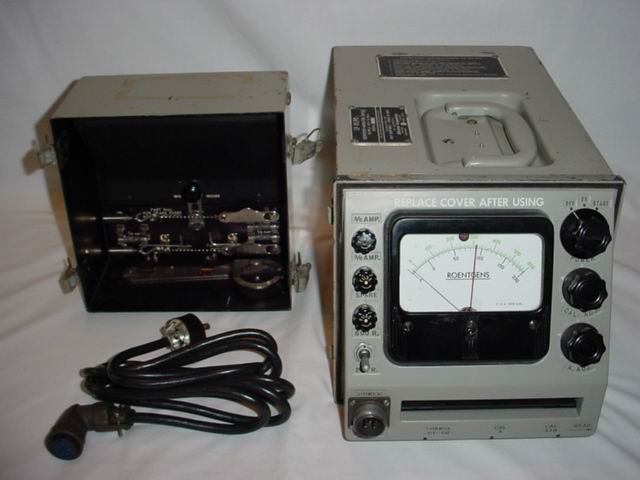

CP-95/PD Computer-Indicator Radiac
Reads DT-60/PD Series Dosimeters
Two Ranges: 0 - 200 & 0 - 600 Roentgens
(Minimum 10 Roentgen Detection)
Serial Number : 6053
Manufactured By: Admiral Corporation, Chicago Ill.
Uses 115 volt AC. Dimensions: 8½" wide x 16¾" deep x 8½" high
Case is manufactured in all aluminum, with rubber gasket seal.

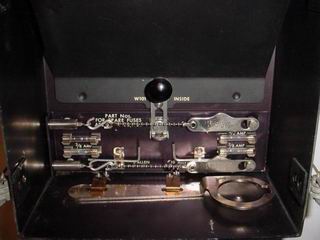

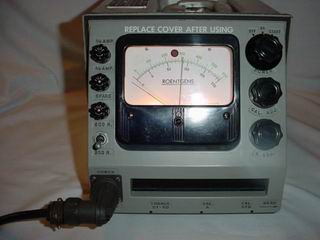

Front Panel with power on & accessories mounted in front cover.
Accessories Included:
Power cord, (2) TL-629/U dosimeter tools, (3) spare 3/8 amp fuses,
TL-645/U spanner wrench, #8 allen wrench, and a #10 allen wrench.

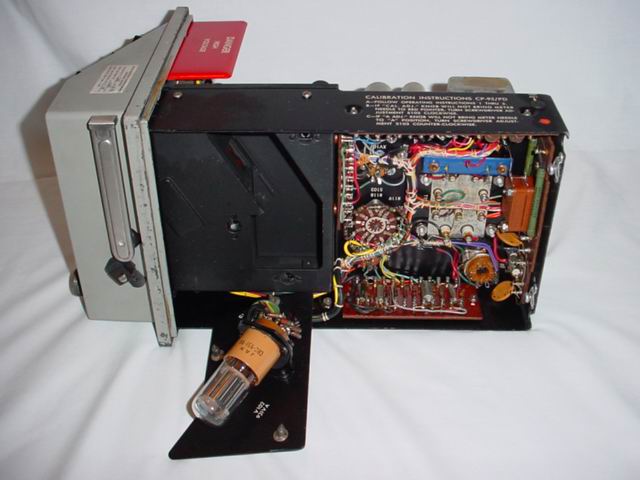

Inside view of top of unit.
All components are marked.

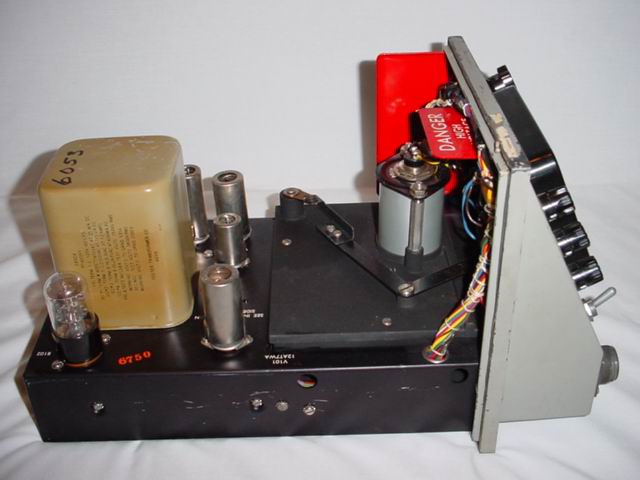

Inside view of bottom of unit.
All components are marked.
Photomultiplier tube is shown on it's mounting plate.

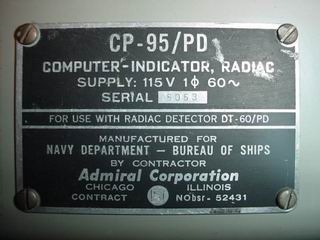

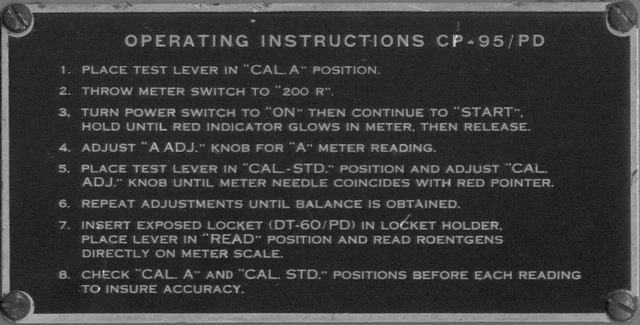

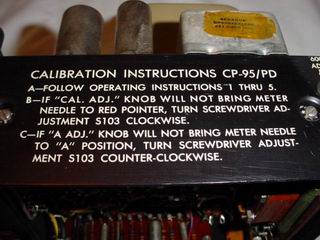

Nameplate and Calibration instructions
Complete instructions are on the top of the unit.

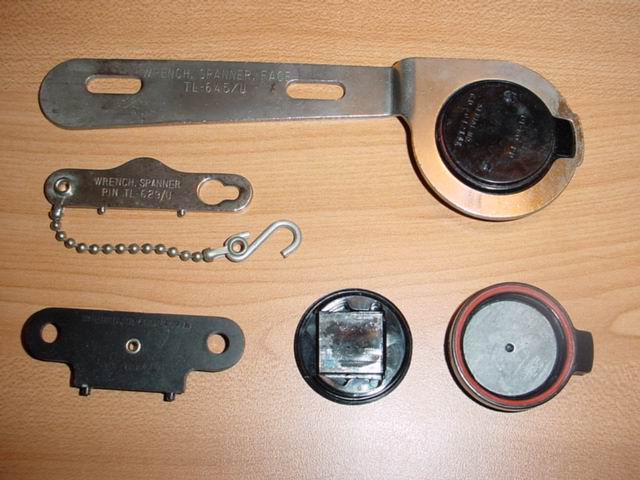

CP-95/PD & CP-95A/PD Tools
Shown above are the tools for dis-assembling the DT-60/PD series dosimeters.
Top: TL-645/U Wrench, Spanner, Face
Shown holding a Canadian issue DT-60/PD
This is to hold the dosimeter while unscrewing the halves. From the CP-95/PD
Middle: TL-629U Wrench, Spanner
The chain is for hooking into the cover of the CP-95/PD, for storage. From the CP-95/PD
Bottom: TL-652/U Wrench, Spanner, Pin
This is from the CP95A/PD, there is a snap on the back for storage in the cover.
The CP-95A/PD does not come with a wrench to hold the dosimeters.
Shown at bottom is another Canadian issue DT-60/PD that is opened.
DT-60/PD Series Dosimeters Here
Compare to the CP-95A/PD
