Radio Corporation of America
WF-12A
Geiger Counter
Radio Corporation of America - Model WF-12A Geiger Counter
Dimensions: 7¾" Long x 3½" Wide x 7¾" High including handle.
This unit measures 0 - 10,000 Counts Per Minute over 3 scales. The headphone jack is ¼".

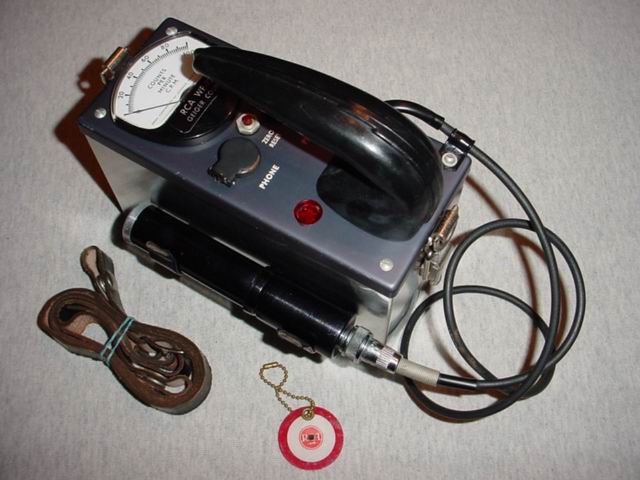

Shown with leather carry strap & check source. Serial Number: 1030

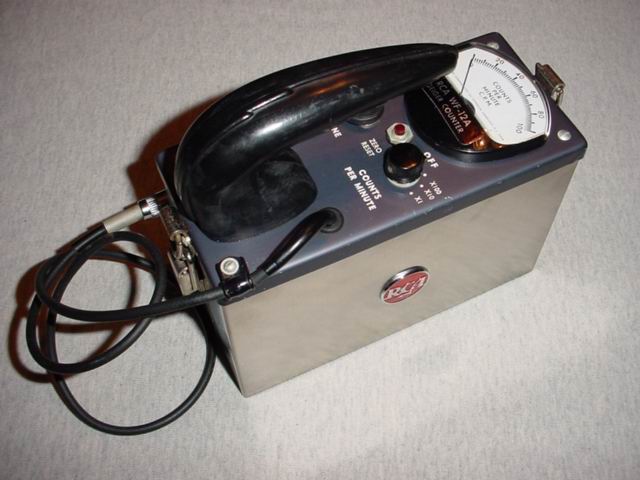

The case bottom is stainless steel, the top is aluminum. 2 clips on the other side hold the probe.

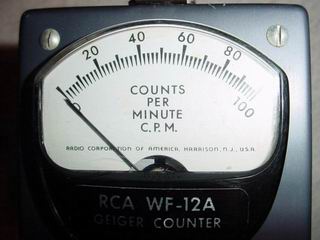

Close-up of meter face and controls.
The meter reads in Counts Per Minute only.

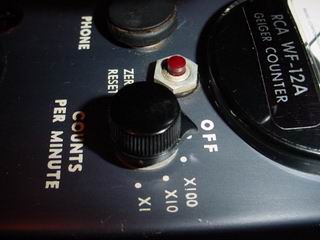

Control panel has range selector switch, Zero Reset button, and headphone jack.

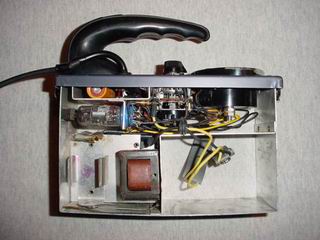

Inside Views
This unit uses 5 batteries: 3 each 1½ volt "D" size batteries, and 2 each 67½ volt "B" batteries.

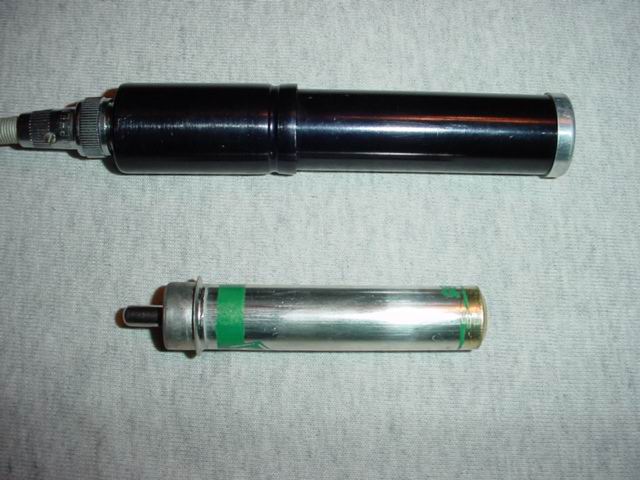

Probe & Geiger Mueller Tube
Probe is 5½" long and 1" in diameter. This probe is solid aluminum and uses the Victoreen 1B85
Geiger Mueller tube.

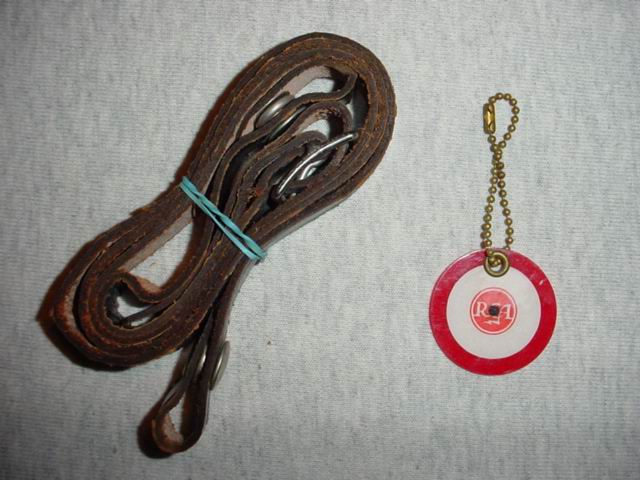

Carry Strap & Check Source
The carry strap is leather and the check source is on a keychain.
The back of the check source reads:
Radioactive
Contains RADIUM
Less than 1 microgram
It gives a reading of 5 mR/hr combined beta & gamma on my PDR-27T.
Other Models in the RCA line include WF-10A, WF-11A, and the WF-14A.
