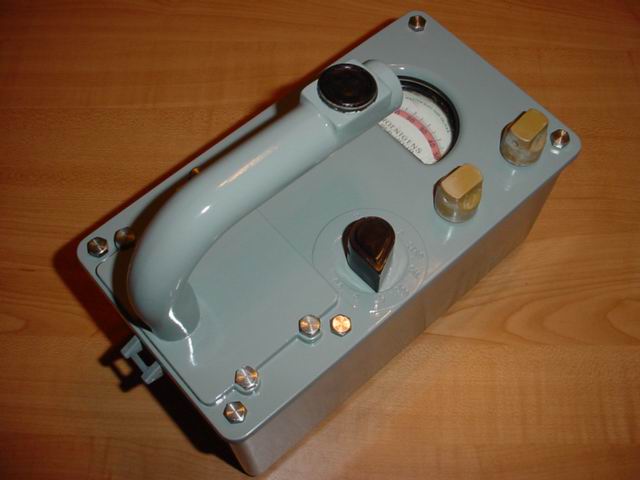

Radiacmeter
IM-75/PDR-18A
IM-75/PDR-18A
Measures 0 - 500 Roentgens Per Hour over 4 Range Scales.
Manufactured By: Tracerlab Incorporated , Boston, MA
With Field Conversion #2 this unit uses (6) BA-30 or BA-3030/U ("D" size) 1½ volt batteries.
Dimensions: 9½" x 8" x 5"
Serial Number : 1924

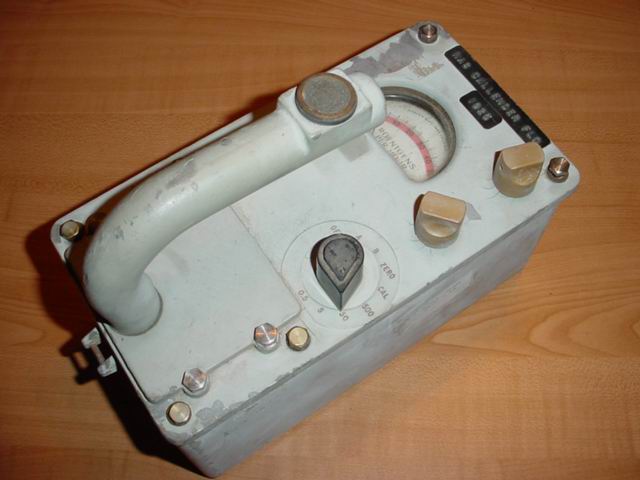

Click the picture above to see the condition of this unit when I received it.

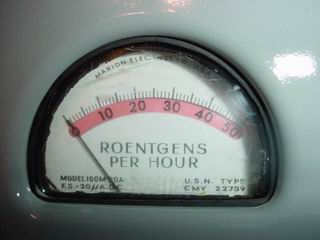

IM-75/PDR-18A Radiacmeter meter face and nameplate.
The scales on the meter change and are color coded as follows:
0 - 500 Roentgens Per Hour = Red
0 - 50 Roentgens Per Hour = Pink (shown above)
0 - 5 Roentgens Per Hour = Orange
0 - 0.5 Roentgens Per Hour = Yellow
The zero set and calibrate scales are White.

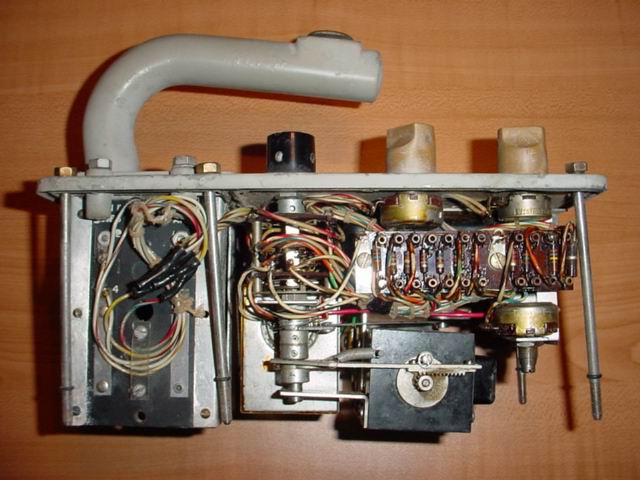

Inside View
The handle contains a push button for a meter lamp.
