IM-108/PD
Radiacmeter
IM-108/PD
Radiacmeter
Measures 0 - 500 Roentgens / Hour
Serial Number: 7065 Built in late 1950's to early 1960's
Manufactured By: Landsverk, Glendale, California
Unit uses two 5.2 volt batteries, type BA-1318/U
and one 1.3 volt battery, type BA-1288/U
This model measures: 6½" long x 4¼"wide x 5½" tall.
Uses Radiacmeter Case item number: CY-2446B/PD

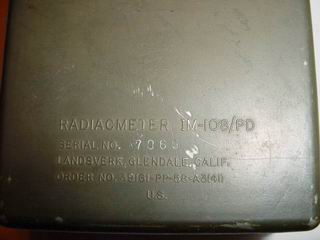

Name Plate shown on left.

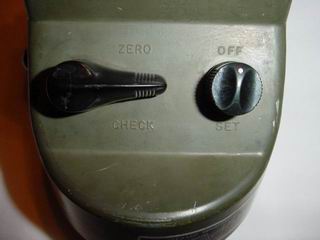

Controls shown on right.

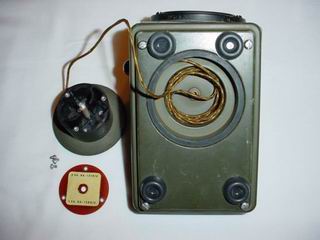

Inside View
Note the Ion Chamber is removable.

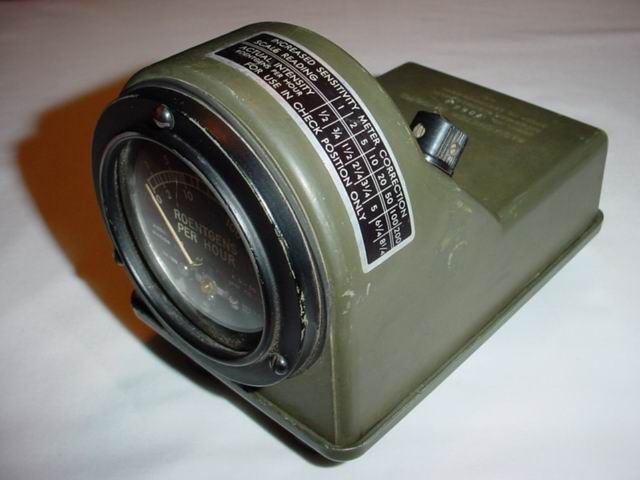

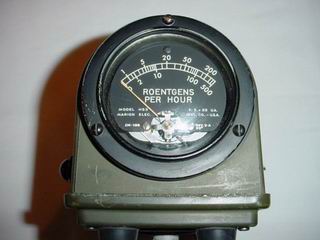

Front View showing meter face. Calibration adjustment is under cap on left side.

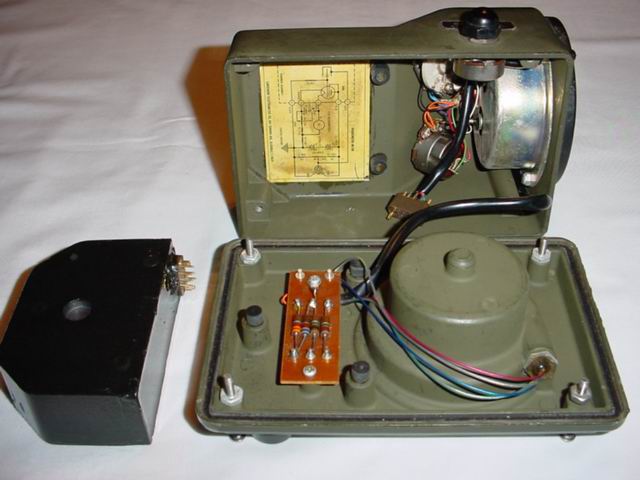

Battery compartment shown open.

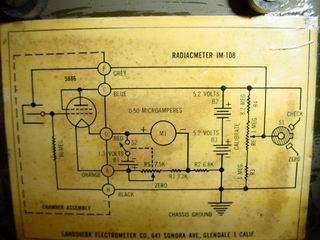

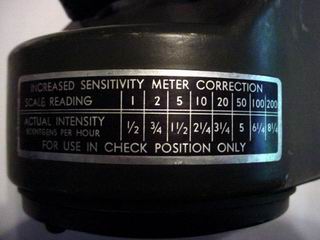

Schematics and meter correction sticker.
See also IM-108/PD (Simulated)
